Bulletproof Helmets
| Overview Yankaian bulletproof helmets are manufactured from UHMWPE fiber composite materials. They are lightweight with excellent ballistic and fragmentation resistance, UV resistant, and minimally affected by moisture. Available in three shell styles: Aramid Combat, Michigan, and FAST. Each style can be configured with a standard suspension system or a boltless locking system.
Key Features - Superior ballistic and fragmentation protection - Lightweight composite construction — reduces neck fatigue on long operations - UV-resistant outer finish for extended field life - Low moisture sensitivity — performance maintained in rain or humid environments - Optional boltless / locking suspension for accessory mounting - Custom colors: Black, OD Green, Coyote Tan, or RAL colors |
Aramid Combat Style — Specifications
Protection area up to 0.14 m². Regular and boltless configurations available. Shell material: Aramid / UHMWPE composite.
Size | Protection Area (m²) | Circumference (cm) Regular | Circumference (cm) Boltless | Weight (g) Regular | Weight (g) Boltless |
M | 0.110 | 54–58 | — | 1300 | — |
M.P.E. | 0.118 | 54–58 | — | 1350 | — |
L | 0.120 | 57–60 | 57–58 | 1450 | 1500 |
L (PE) | 0.125 | 58–63 | — | 1400 | — |
XL | 0.140 | 60–64 | — | 1500 | — |
— = configuration not available in this size.
Michigan Style — Specifications
Protection level: NIJ IIIA across all sizes. Single locking suspension system standard.
Size | Protection Area (m²) | Protection Level | Circumference (cm) | Weight (g) |
S | 0.100 | NIJ IIIA | 52–56 | 1300 |
M | 0.110 | NIJ IIIA | 54–57 | 1320 |
L | 0.120 | NIJ IIIA | 57–59 | 1400 |
XL | 0.130 | NIJ IIIA | 59–63 | 1500 |

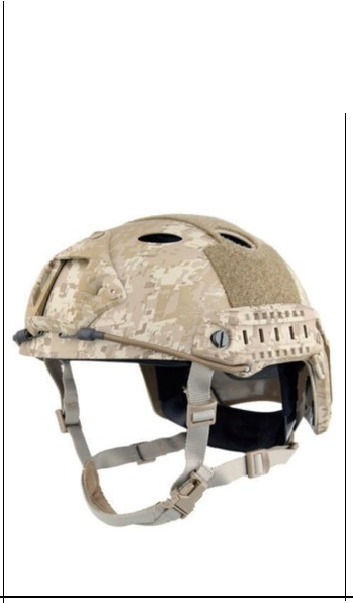

FAST Style — Specifications
Low-profile high-cut design for compatibility with communication equipment and hearing protection. Protection level: NIJ IIIA.
Size | Protection Area (m²) | Protection Level | Circumference (cm) | Weight (g) |
S | 0.100 | NIJ IIIA | 52–56 | 1300 |
M | 0.110 | NIJ IIIA | 54–57 | 1320 |
L | 0.120 | NIJ IIIA | 57–59 | 1400 |
XL | 0.130 | NIJ IIIA | 59–63 | 1500 |
Standards & Certifications NIJ IIIA | Effective against 9mm FMJ, .357 SIG, .44 Magnum | MIL-SPEC ballistic fabric | Custom certification targets available on request |
Ballistic Vests
| Overview The flexible long-chain structure of ultra-high molecular weight polyethylene (UHMWPE) fiber allows bullet impact energy to be rapidly dispersed over a larger area, thereby reducing the indentation depth of the ballistic vest and minimizing non-penetrating injuries caused by impact. Ballistic vests made from continuous unidirectional (UD) fabric of different specifications are soft and comfortable, lightweight and well-fitted, with remarkable bulletproof performance. They meet domestic GA141-2010 standard and US NIJ standard requirements for bulletproof protection.
Key Features - Continuous UD non-woven fabric panels — no seam weak points - Protected area: 0.32 m² (standard); custom dimensions on request - Meets China GA141-2010 Level II and Level III - Meets US NIJ IIIA (9mm, .357 SIG, .44 Magnum) - SF102 series: combined ballistic + stab protection in a single panel - Available with or without outer cover carrier |
Ballistic Vest — Model Specifications
Four models available: WB422B, WB532, WB534, and SF102 (bulletproof + stab-resistant).
Item | Model | Standard | Protection Level | Wing Count | Areal Density (kg/m²) | Area (m²) | Weight (kg, no cover) |
Ballistic Vest | WB422B | GA141-2010 | Level II | 54 | 7.0 | 0.32 | 2.24 |
Ballistic Vest | WB422B | GA141-2010 | Level III | 69 | 9.0 | 0.32 | 2.88 |
Ballistic Vest | WB422B | NIJ IIIA | 9mm | 36 | 4.7 | 0.32 | 1.51 |
Ballistic Vest | WB422B | NIJ IIIA | .357 | 45 | 5.5 | 0.32 | 1.76 |
Ballistic Vest | WB422B | NIJ IIIA | .44 | 49 | 6.4 | 0.32 | 2.05 |
Bulletproof+Stab Vest | SF102 | GA141-2010 + GA68-2008 | Level II / 24+/-0.5J | — | 9.6 | 0.32 | 3.07 |
Bulletproof+Stab Vest | SF102 | GA141-2010 + GA68-2008 | Level III / 24+/-0.5J | — | 10.8 | 0.32 | 3.46 |
Ballistic Vest | WB532 | GA141-2010 | Level II | 49 | 6.4 | 0.32 | 2.05 |
Ballistic Vest | WB532 | GA141-2010 | Level III | 62 | 8.1 | 0.32 | 2.59 |
Ballistic Vest | WB532 | NIJ IIIA | 9mm | 34 | 4.5 | — | 1.44 |
Ballistic Vest | WB532 | NIJ IIIA | .44 | 42 | 5.5 | 0.32 | 1.76 |
Ballistic Vest | WB534 | GA141-2010 | Level II | 39 | 6.4 | 0.32 | 2.05 |
Ballistic Vest | WB534 | GA141-2010 | Level III | 50 | 8.1 | 0.32 | 2.59 |
Ballistic Vest | WB534 | NIJ IIIA | 9mm | 26 | 4.5 | 0.32 | 1.44 |
Ballistic Vest | WB534 | NIJ IIIA | .44 | 32 | 5.5 | 0.32 | 1.76 |
SF102 integrates both bulletproof and stab-resistant protection in a single soft panel, meeting GA141-2010 and GA68-2008 dual-standard simultaneously.
Wing Count = number of UD fabric layers used in the panel assembly. Higher count = higher areal density = higher protection level.
Protection Standards Reference
|
Customization & Additional Products

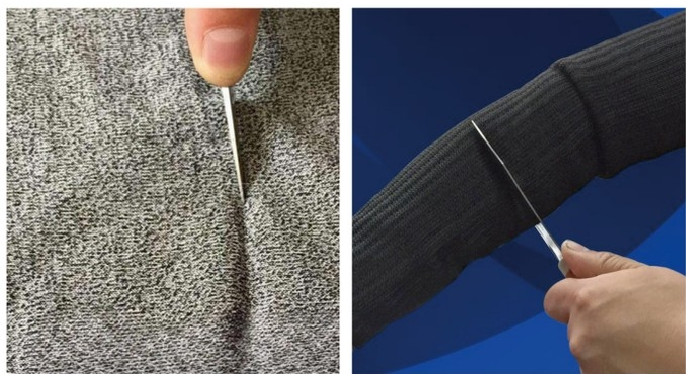

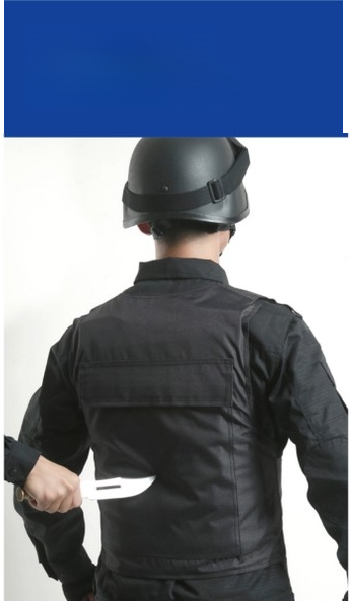

| Anti-Stab Fabric & Vests Yankaian anti-stab fabric is produced using UHMWPE fiber with special adhesives and a unique production process, resulting in a continuous soft roll. The material exhibits outstanding resistance to both stabbing and incision. It is lightweight, flexible, acid/alkali resistant, corrosion resistant, waterproof, and UV stable. - Available in multiple areal density grades per threat level - Dual function: stab-resistant + ballistic protection in composite panels - Suitable for anti-riot vests, law enforcement gear, and security garments
Custom Configuration Options - Protection level: GA Level II, III, IV / NIJ IIIA, III, III+ / NATO CRISAT — or customer-specified - Panel size: standard 0.32 m2 or fully custom dimensions - Carrier options: 500D Cordura, poly-cotton, covert soft-shell, flame-retardant - Color: Black, OD Green, Coyote Tan, Multicam, custom RAL - Accessories: MOLLE webbing, shoulder pads, side panels, quick-release buckles - Certification support: full documentation package available for import/procurement

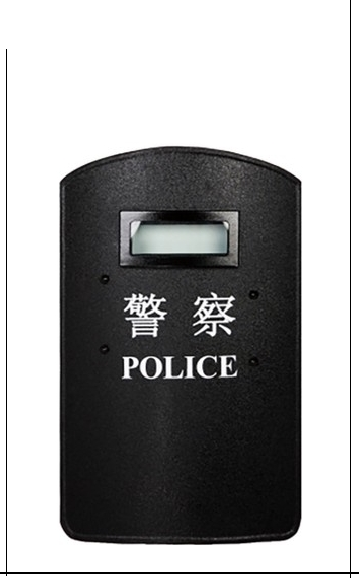

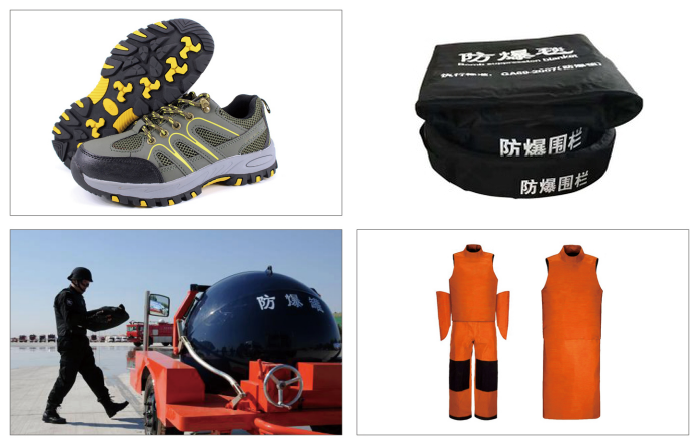

Additional Products - Bulletproof shields — handheld, GA-certified, transparent window option - Bulletproof insert plates — NIJ Level III / IV, PE + ceramic composite - Safety footwear with anti-puncture UHMWPE midsole - Explosion-proof blankets and barriers - High-pressure waterjet protective suits - Medical special protective garments |
